AfterPicture & Fixed Windows in Coral Gables, FL | Winslow Windows & Doors
Picture windows are the non-operable workhorses of Florida residential design, delivering wide, uninterrupted sightlines without a single moving part to compromise the building envelope. In Coral Gables, where hurricane codes govern every penetration in your exterior walls, a properly specified fixed window has to do two things at once: honor the view and survive the storm. Winslow Windows & Doors supplies and installs laminated impact glass picture windows across our PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines, and we set them in accordance with AAMA 2400/2410 installation practice. Call (904) 478-8983 to schedule a free on-site measurement in Coral Gables.
Product Overview - Picture & Fixed Windows

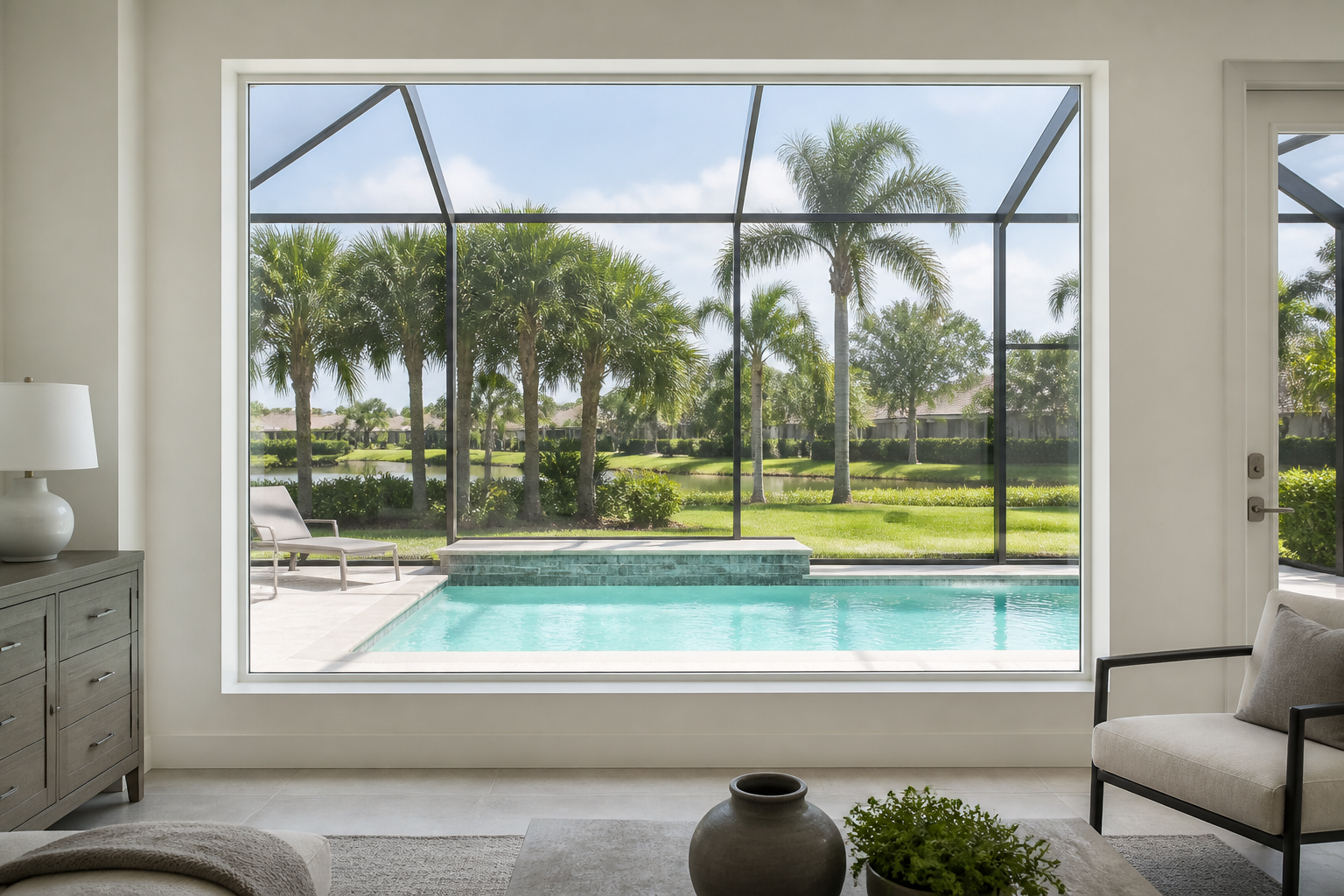

A picture window is a fixed panel of glass in a permanent frame. No sashes, no tracks, no rollers. That simplicity is exactly why it performs so well in High-Velocity Hurricane Zone construction: every operable window has multiple mechanical joints and weather seals that can flex or fail under cyclic wind loading, while a fixed unit transfers pressure directly to the surrounding structure. For Coral Gables homeowners, this product profile is the natural choice for living rooms facing the treetops along Old Cutler Road, second-story bedroom windows overlooking a pool, or a foyer wall where you want daylight without the draft of an opening unit near the front door.
Architecturally, picture windows anchor mixed window walls. The most common Coral Gables configuration we install pairs a wide fixed center panel with operable casement, single-hung, or horizontal roller units on either side. That gives you the panoramic view where it matters most, with ventilation exactly where you want it. The fixed panel itself is a non-operable laminated impact glass panel built for maximum unobstructed views, and because it never opens, it is also the quietest, most airtight component in the assembly.
Frame material matters here. We offer aluminum, the dominant choice in Coral Gables for its strength-to-weight ratio and crisp sightlines, and vinyl for tighter budgets or inland locations where thermal transfer is a bigger concern than coastal salt exposure. Both are engineered to accept the laminated glass packages and reinforcement required for Miami-Dade performance standards.
Technical Specifications
| Specification | Available Options |
|---|---|
| Frame materials | Aluminum, Vinyl |
| Maximum panel size | Up to 120″ wide |
| Impact glass core | Laminated impact glass with PVB interlayer |
| Additional glass options | Low-E insulated glass, tinted glass, clear glass |
| Finish colors | White, Almond, Bronze, Black, Tan |
| Operation | Non-operable, fixed panel |
| Compliance documents | Miami-Dade NOA and Florida Product Approval per configuration |
| Design pressure | Matched to your Coral Gables wind zone, up to +/-100 |
Every configuration is quoted by panel size, glass make-up, and design pressure required for your specific elevation and exposure. No two Coral Gables sites are identical, and we do not sell one-size-fits-all packages.
Hurricane & Compliance Performance
The centerpiece of every picture window we sell is laminated glass with a PVB (polyvinyl butyral) interlayer. Under impact, the glass may crack, but the interlayer holds the broken pieces in the frame, keeping wind, water, and debris out of your living room. This is fundamentally different from ordinary tempered glass, which shatters into small pieces and leaves the opening exposed.
Each picture window configuration carries Miami-Dade NOA (Notice of Acceptance) and Florida Product Approval numbers. These documents are product-specific and configuration-specific, so we verify the exact numbers on your written quote. When the Coral Gables building department asks for documentation, you’ll have it, not a vague promise of “impact rated.”
All picture window packages we supply for Coral Gables projects are engineered to Florida Building Code (FBC) High-Velocity Hurricane Zone (HVHZ) requirements. This is stricter than the standard used in most of the state, and it is the baseline required for any permitted window replacement in your city.
HVHZ-rated products are tested under a protocol family that includes TAS 201 for large-missile impact, TAS 202 for cyclic wind-pressure loading, and TAS 203 for forced-entry resistance. These tests simulate the repeated pressure fluctuations of a real hurricane, not a single static gust. When we reference design pressure ratings, this is the testing context behind them.
We specify design pressures matched to your wind zone, up to +/-100, and never higher than your site requires. Over-specifying a panel wastes money and adds weight; under-specifying fails inspection. Winslow Windows & Doors calculates the required DP per opening during our free on-site measurement in Coral Gables.
Every impact picture window can be ordered with Low-E insulated glass for better thermal performance and UV control. In Coral Gables, where air conditioning runs for most of the year, Low-E coatings on the inside face of the laminated panel make a measurable difference in heat gain through large fixed glazing areas. Tinted glass is also available for west-facing walls.
Color & Glass Options
The five finish colors we offer, White, Almond, Bronze, Black, and Tan, cover the spread of Coral Gables architecture. White is the standard on Mediterranean and Spanish Colonial homes, where it matches stucco and trim. Bronze and Black suit modern or transitional elevations, particularly where dark-tinted glass is already in the design. Tan and Almond are popular choices for the softer coastal palette seen in the Gables’ older neighborhoods, blending with limestone, coquina, and warm wood accents.
On the glass side, clear laminated impact glass is the purest option when the priority is unfiltered daylight and true color from your garden or water view. Low-E insulated glass trades a small degree of optical neutrality for year-round thermal comfort and reduced fading on furniture and floors. Tinted glass handles glare, which matters for picture windows that frame a wide-open western sky. Many Coral Gables clients combine tinted glass on the main fixed panel with clear glass on the operable flanking units to keep the room balanced.
Installation by Winslow Windows & Doors in Coral Gables
A picture window with a valid NOA is only as good as the rough opening it sits in. The NOA-rated system’s performance is contingent on installation that matches the tested assembly. In our experience across Coral Gables, we regularly see failures that trace back to the same root causes: openings that were never flashed correctly, fasteners that miss the structural framing, or perimeter seals that were skipped entirely. Water eventually finds manufacturers that were never the problem; the installation was.
Our process begins with a pre-install inspection where we verify the condition of the structural opening, the substrate, and the existing flashing. If the substrate is compromised, we flag it before we remove one screw, because we will not set an impact window into a rotting buck or a cracked lintel. We set every panel level, plumb, and square, shimming and checking both diagonals before any fastener is driven. The frame is then anchored per the requirements of the NOA, and the perimeter is sealed with AAMA 812 low-expansion foam sealant before the exterior is finished and the sill flashing is verified for positive drainage. A final water test confirms the seal. Every installation follows AAMA 2400/2410 practice, and every panel we install in Coral Gables is installed to pass the same rigor the NOA was issued under.
Permitting is part of the job. Coral Gables is a High-Velocity Hurricane Zone jurisdiction, and the building department does not accept hand-waved documentation. We know what the permit submittal requires, we provide the product approval numbers and drawings, and we coordinate inspections just like any reputable Coral Gables contractor should.
Frequently Asked Questions - Picture & Fixed Windows
Design pressures are matched to your specific wind zone, up to +/-100, and never higher than your site requires. The exact DP for your Coral Gables opening depends on your elevation, exposure category, and panel size. We calculate that during the free on-site measurement. Call (904) 478-8983 to get your opening measured and the correct DP quoted.
Lead time depends on the manufacturer line, glass make-up, finish color, and size. Custom oversize panels, especially those up to 120″ wide, often have longer fabrication windows than standard sizes. We’ll give you a written lead-time range on your quote, and we coordinate installation scheduling so the project starts when the panels are in our Coral Gables warehouse, not before.
Yes. Coral Gables is an HVHZ jurisdiction and will require product approval documentation as part of your window permit. The exact NOA and Florida Product Approval numbers are configuration-specific, so we verify them for your specific sizes and glass options and include the documentation in the permit package. You won’t chase paperwork; we’ll handle it with the submittal.
Sizes are built to your opening, not the other way around, up to a 120″ maximum panel width. Configuration options include a single large fixed panel, a fixed panel centered between operable units, or a full wall of multiple fixed panels separated by mullions. During the on-site measurement, we go over what works structurally and aesthetically. Call (904) 478-8983 to book that visit.
The frame itself needs almost nothing: a mild soap-and-water wash every few months and a check of the perimeter caulk joint once a year. In Coral Gables’ salt-air environment, anodized or painted aluminum frames should be rinsed after heavy wind events. Vinyl needs no painting, ever. The interior glass cleans with standard glass cleaner; we’ll show you the right products at the time of install to avoid damaging the interlayer edge.
Get a Quote - Picture & Fixed Windows in Coral Gables
If you’re planning a picture window project in Coral Gables, start with a free on-site measurement. We’ll walk the openings with you, talk glass and finish options, and put a written line-item quote in your hands. Call Winslow Windows & Doors at (904) 478-8983.
Written by the team at Winslow Windows & Doors, serving Coral Gables with hurricane-impact window and door installations since our founding.
